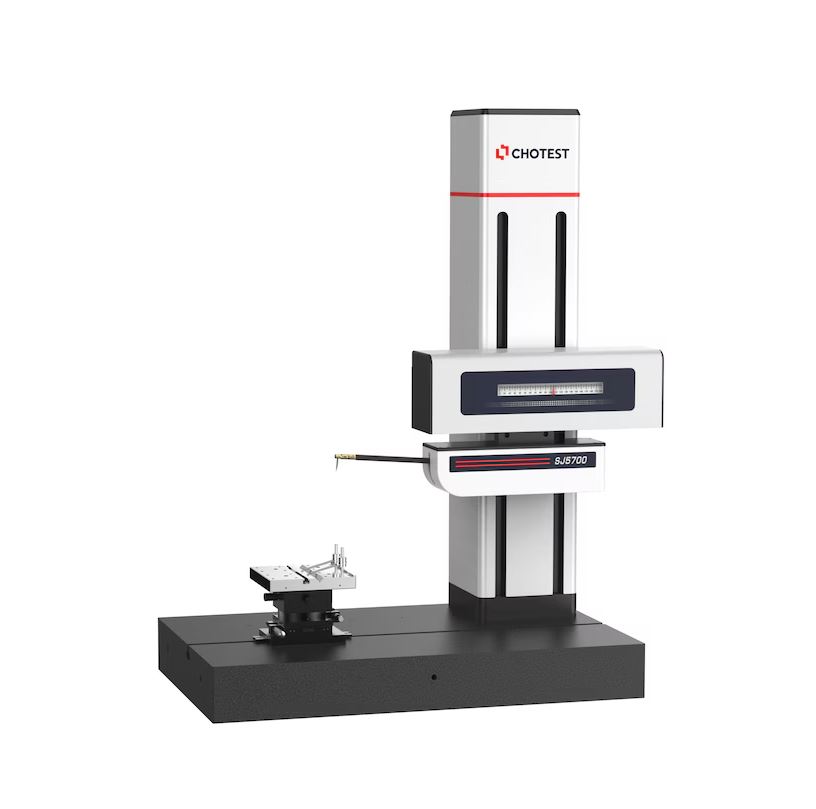

2D CNC Profilometer
Professional 2D CNC Contour Graph.
Accurate and fast surface contour evaluation.
Measuring range:
X-axis: 200 mm
Z-axis: 450 mm
Z1-axis: ±25 mm
Accuracy:
X-axis: ±(0.6 + 0.015L) µm (L = mm)
Z1-axis: ±(0.6 + 0.05H) µm (H = mm)
Straightness: ±1 µm / 200 mm
Main advantages include a clear and user-friendly software interface in English (or localized language), GD&T evaluation (straightness, perpendicularity, parallelism, profile, roundness...), automatic thread analysis (pitch, angle), ellipse evaluation, and comparison of scanned data with a DXF model.
The device is available in our showroom.
In addition to its quality, you’ll be surprised by its unbeatable price.
2D CNC Contour Graph with full accessories (universal rotary and tiltable table, vise, computer) starting from €19,000.
